New Blue

Jack's replacement for the Rallye Replica

(click on thumbnails below for larger picture)

Ongoing progress:

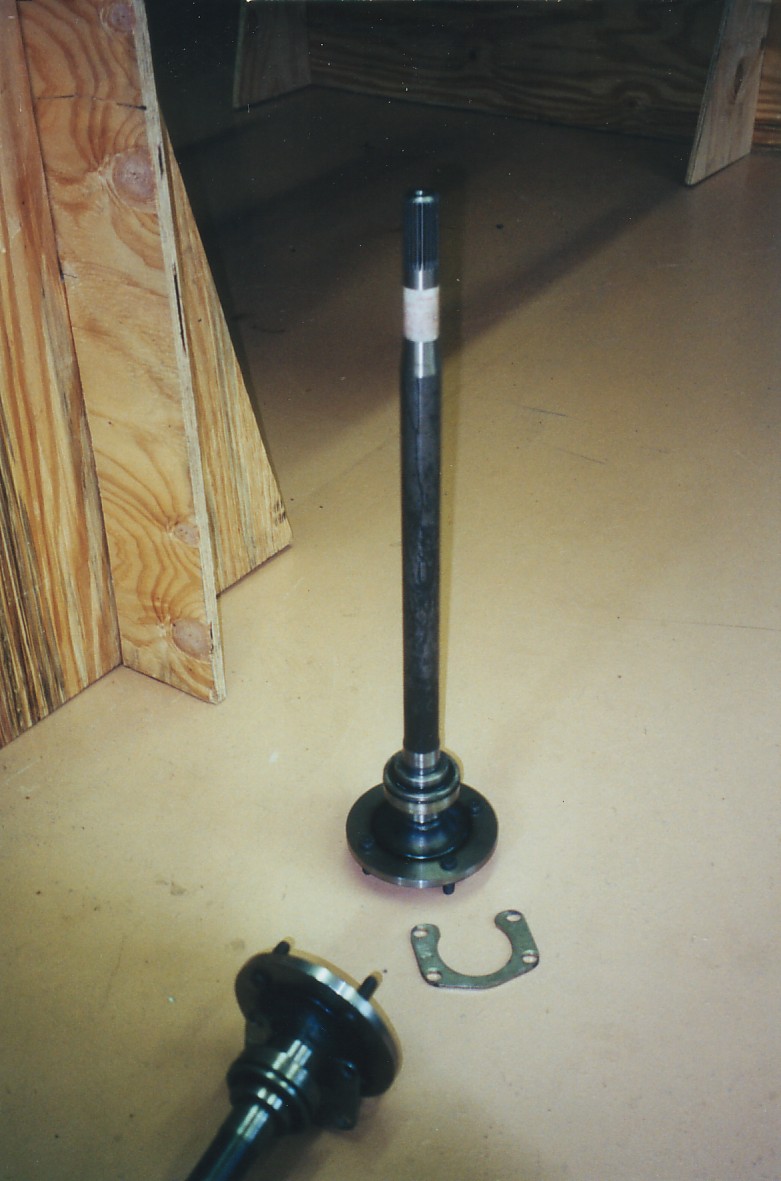

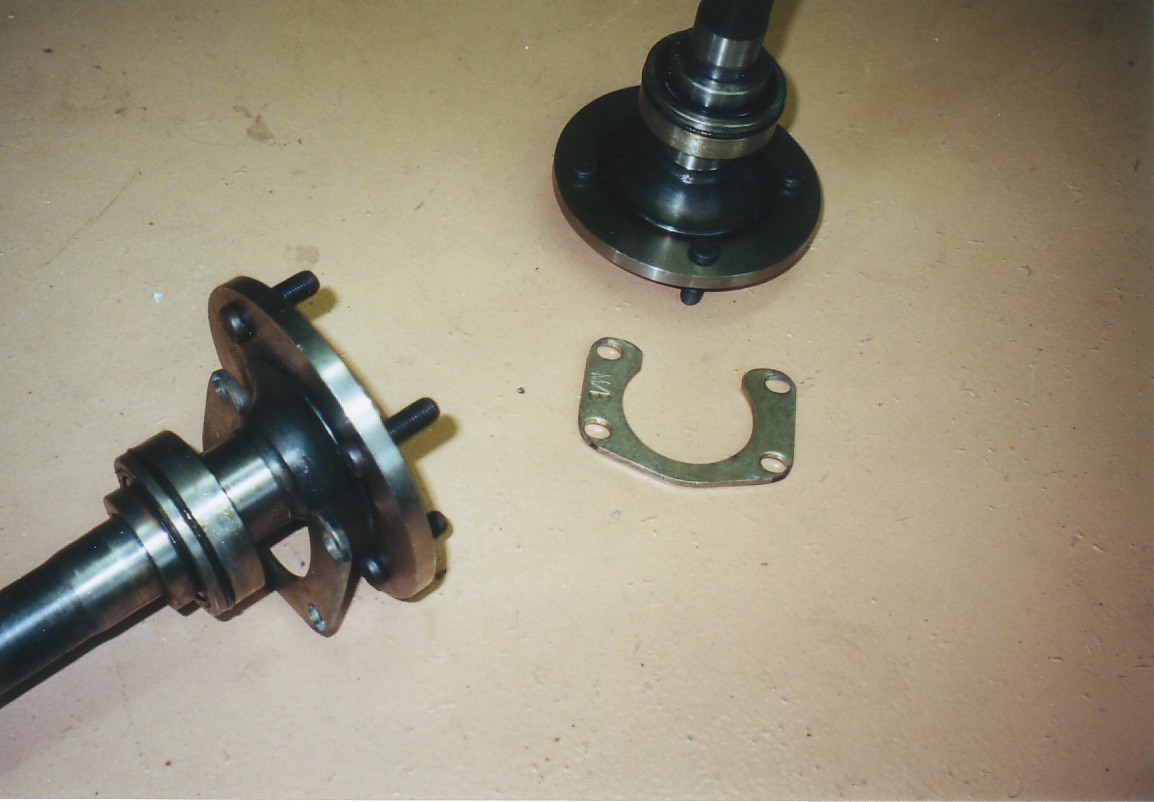

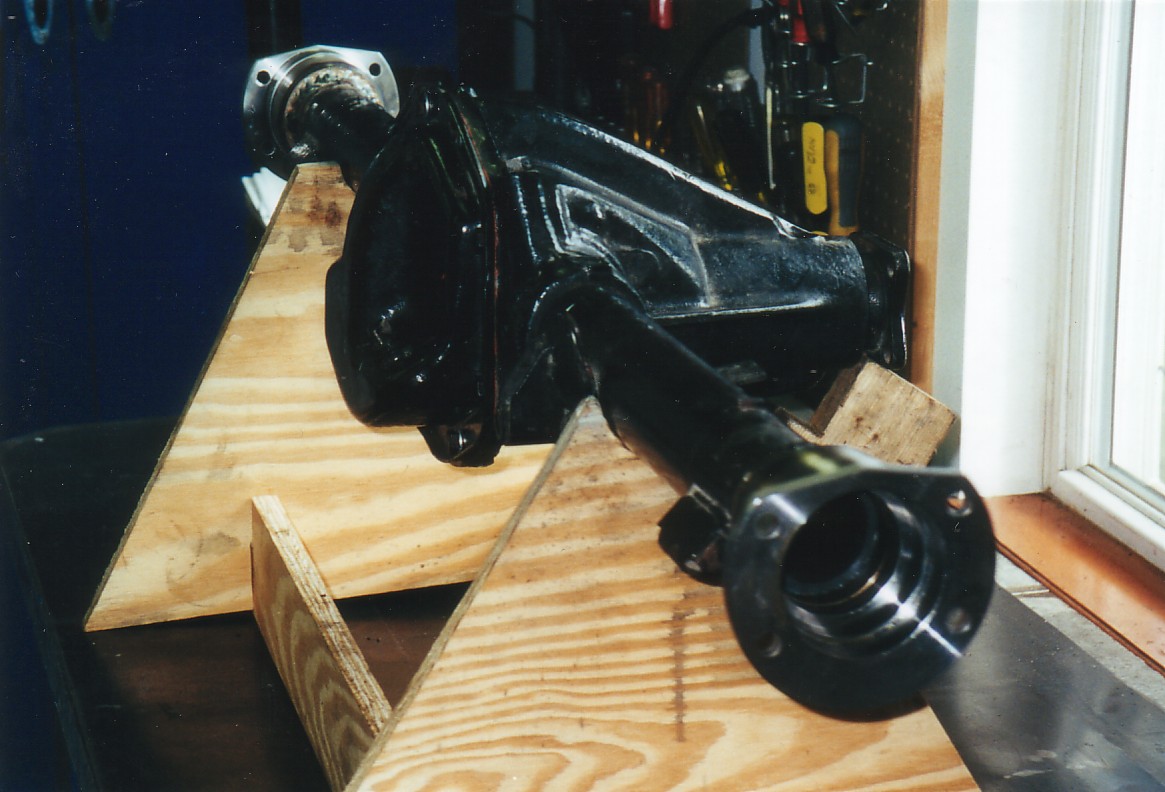

Southwick TR-3 and TR-4 solid rear axle conversion (one-piece axle / hub combo) to prevent a recurrence of the disaster on the prior car...  These suckers won't break!

100 DPI Jpegs


200 DPI Jpegs


Southwick aluminum TR-3 through TR-6 front hubs - to prevent the FRONT wheels from coming off too:


How do you fix a destroyed car?  Start with another car!  When it's a 40 year old Triumph TR-4, you can guarantee that some work will be required.

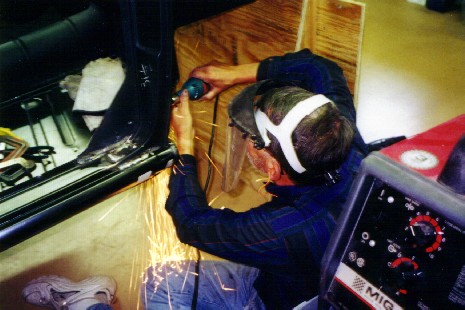

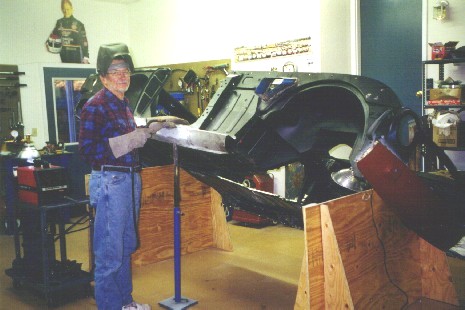

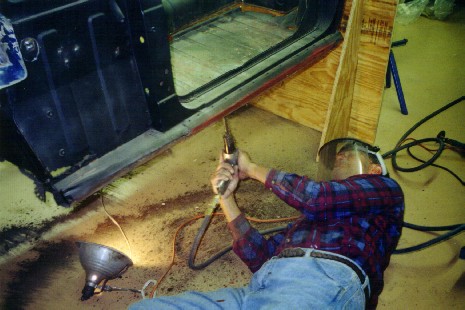

Some body work - old floor out, new floor in, reclaiming fender vents from Old Blue, finishing rocker and hood:

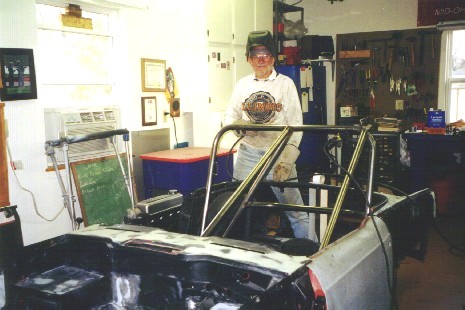

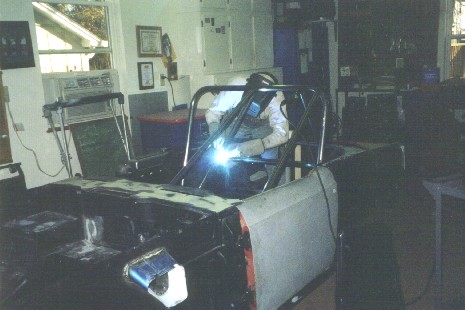

New Roll Bar - fitting to car and driver, finished product:

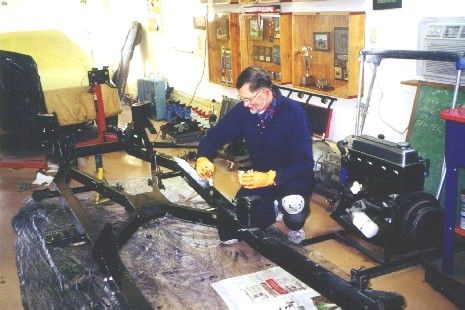

Prepare frame:


Paint body, install roll bar and new trick Tilton master cylinder setup, apply graphics:

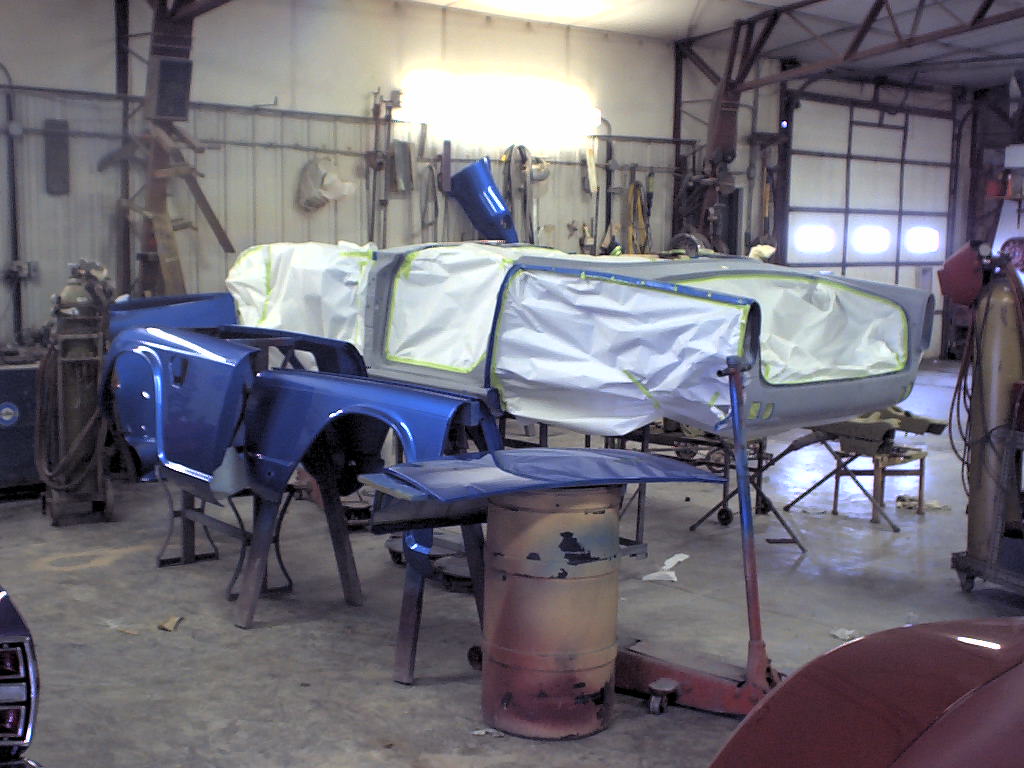

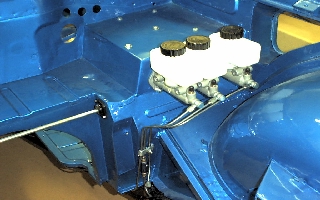

body panels painted 3.jpg (124241 bytes)    cage in body.jpg (294029 bytes)    mast cyls.jpg (85672 bytes)

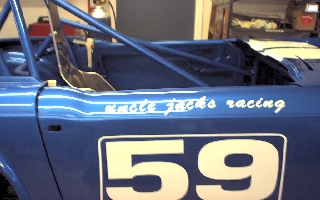

door graphics.jpg (81615 bytes)

Assemble Engine and Tranny from old car and "say ahhhhh...":

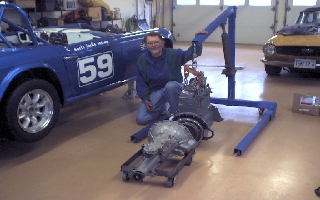

engine trans fit.jpg (77614 bytes)    in she goes.jpg (97039 bytes)

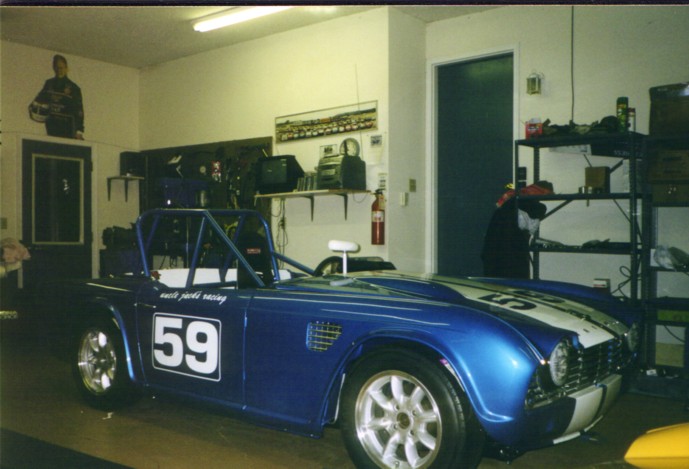

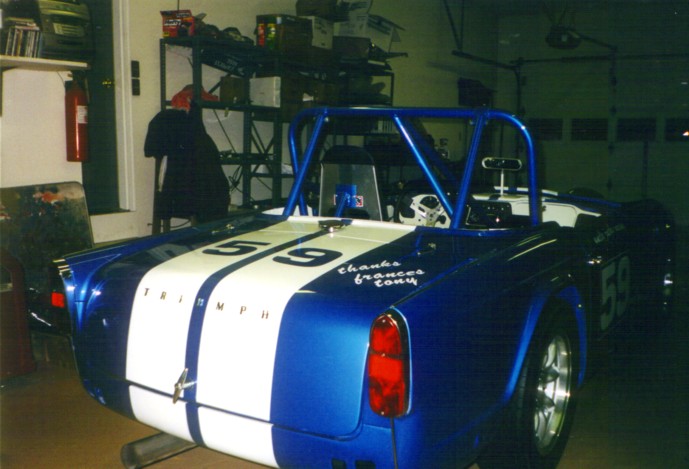

Finished (almost) product:

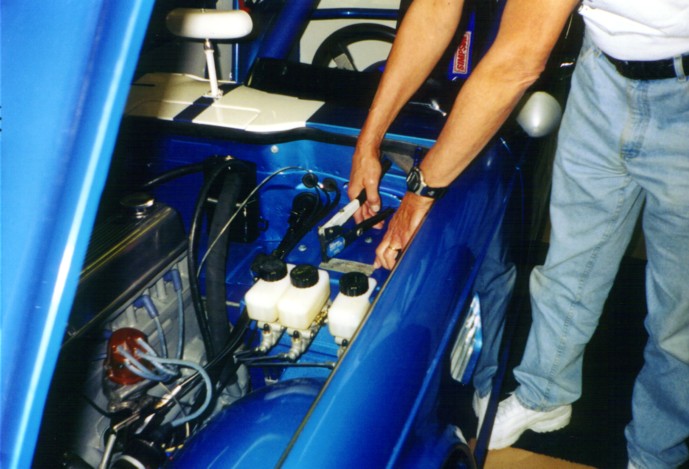

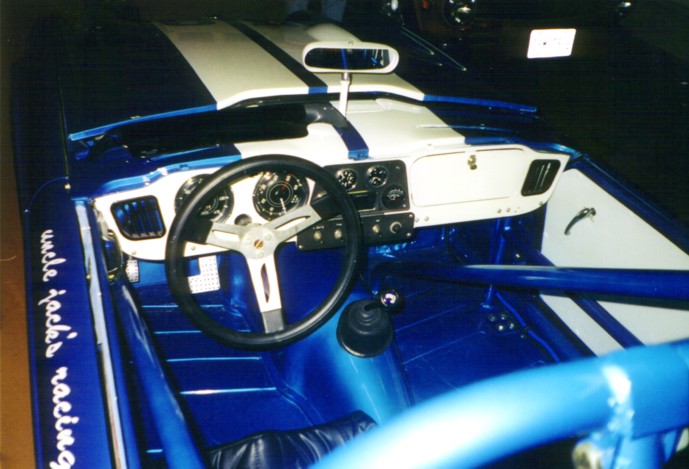

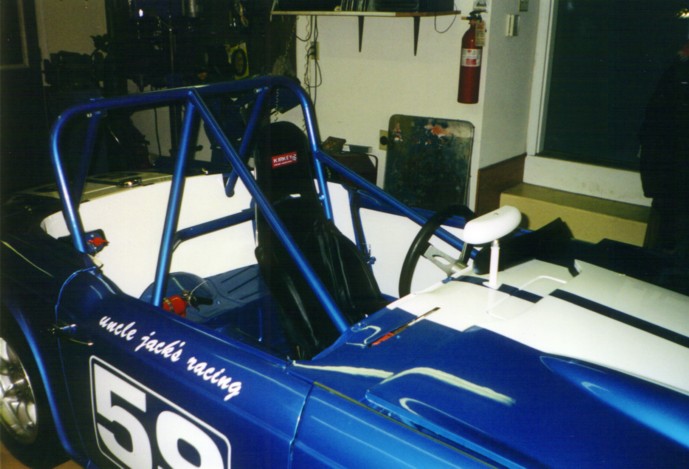

Re-affixing the number plate, views of the cockpit...

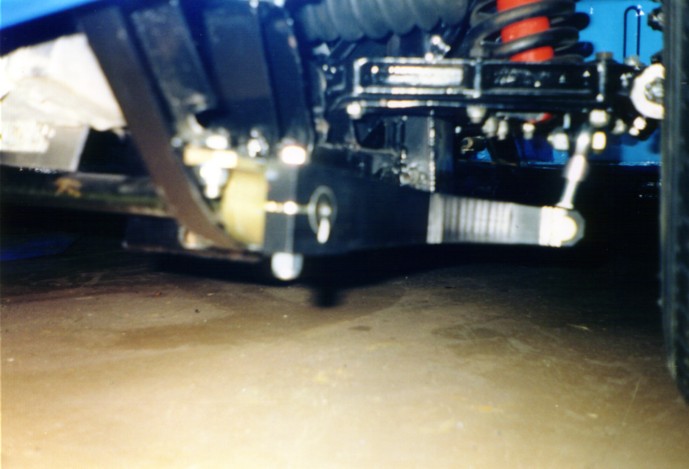

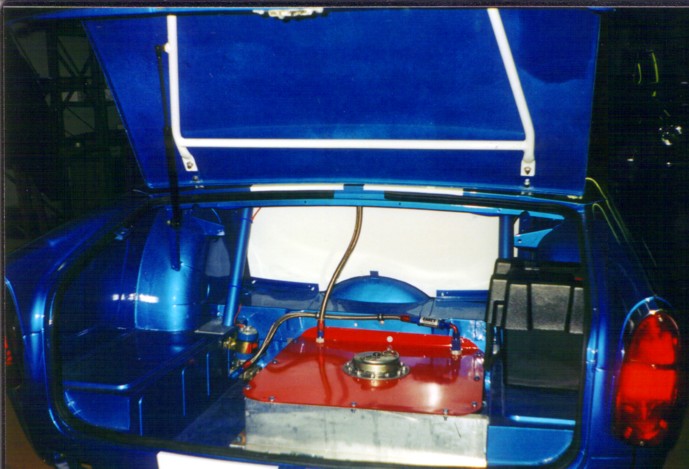

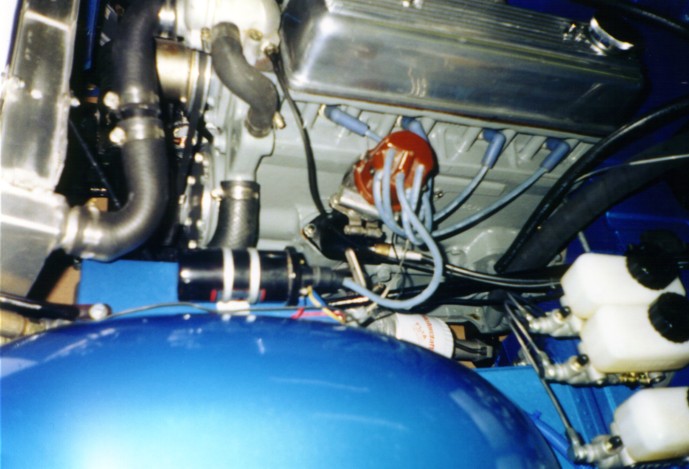

What a clean engine compartment!  Nice trunk and front sway bar detail as well.
