Cam Failure



Cam Failure Details

Page 1: Drivetrain removal    Page 2: Engine Disassembly    Page 3: Engine Assembly    Page 4: Drivetrain installation

Cam Failure Detail

(click on thumbnails for larger image)

Root cause: chamfer at base of tappet?

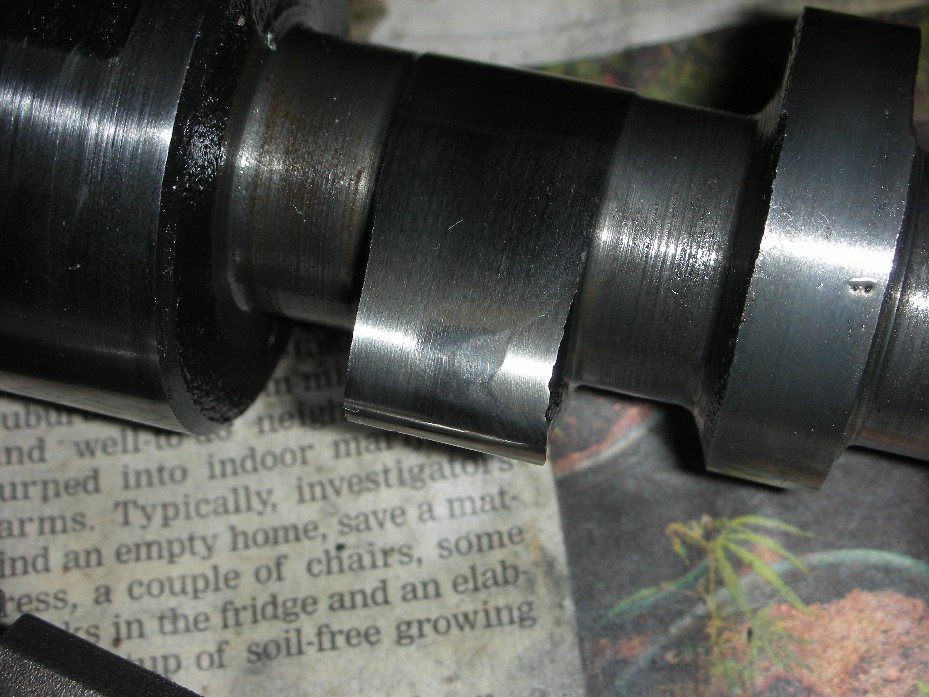

Cam lobes

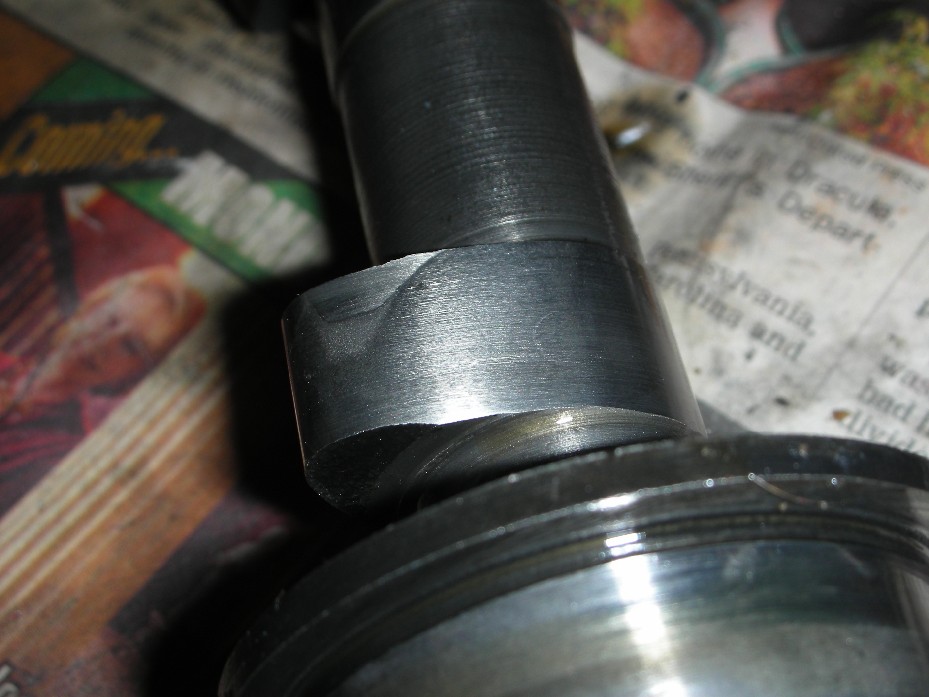

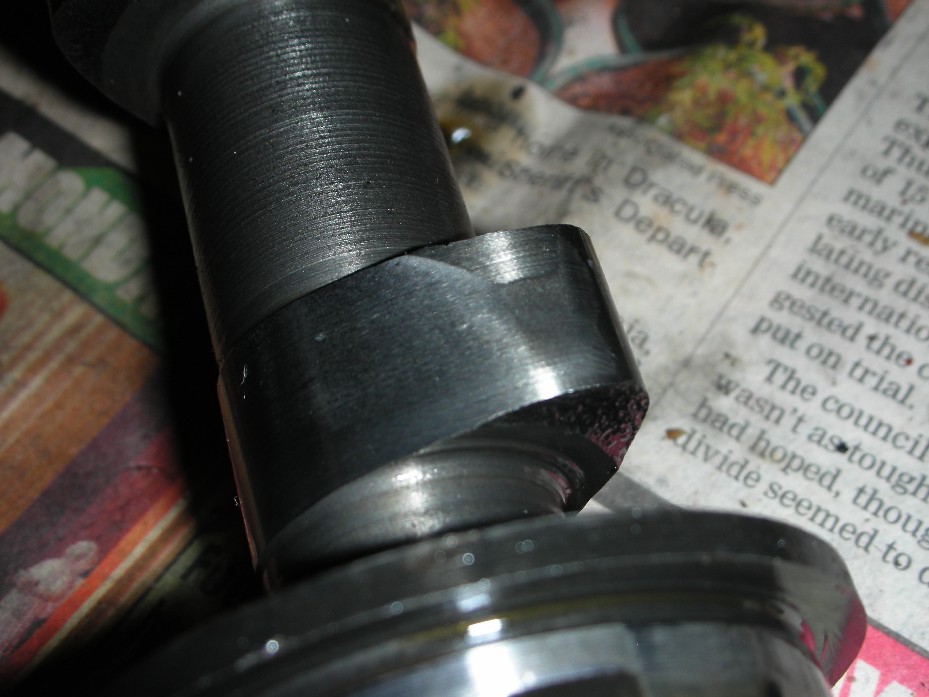

1 Exhaust - Opening side / Closing side

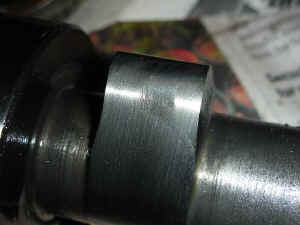

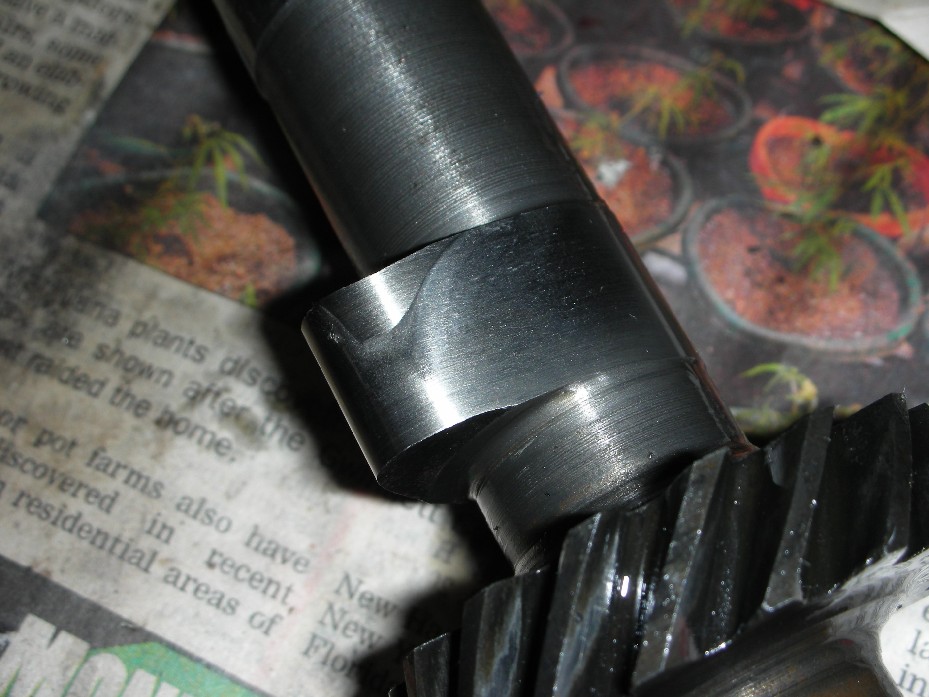

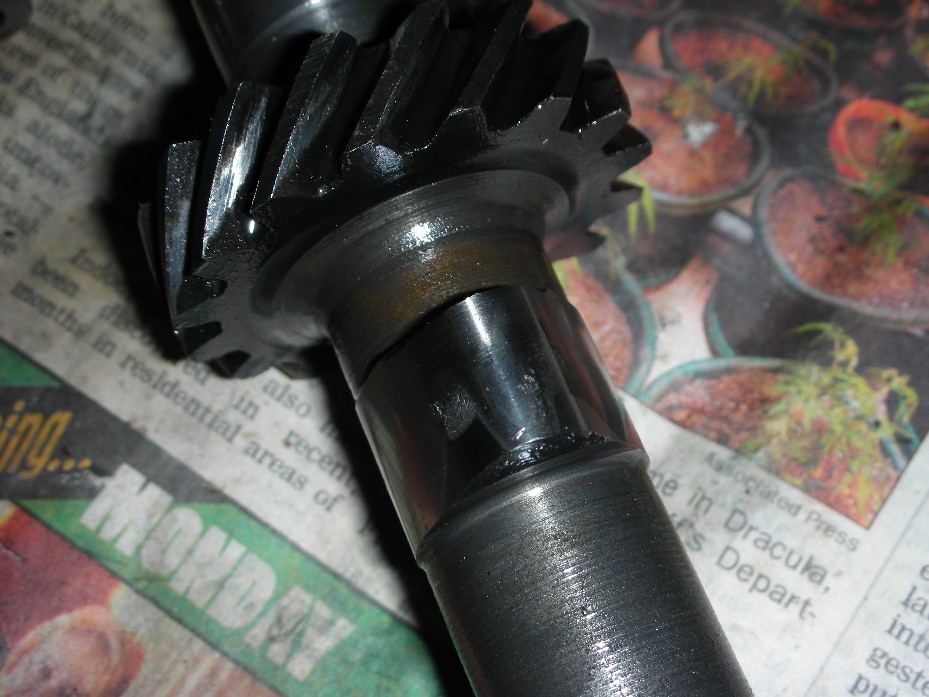

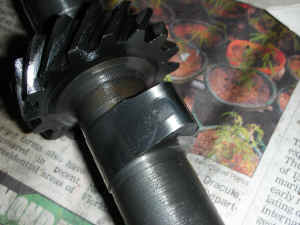

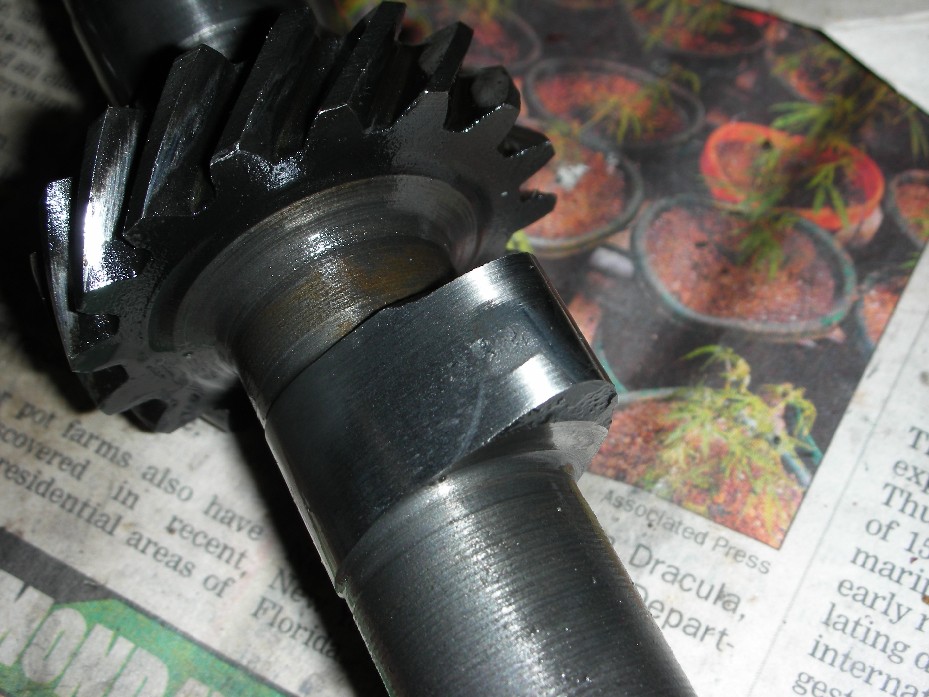

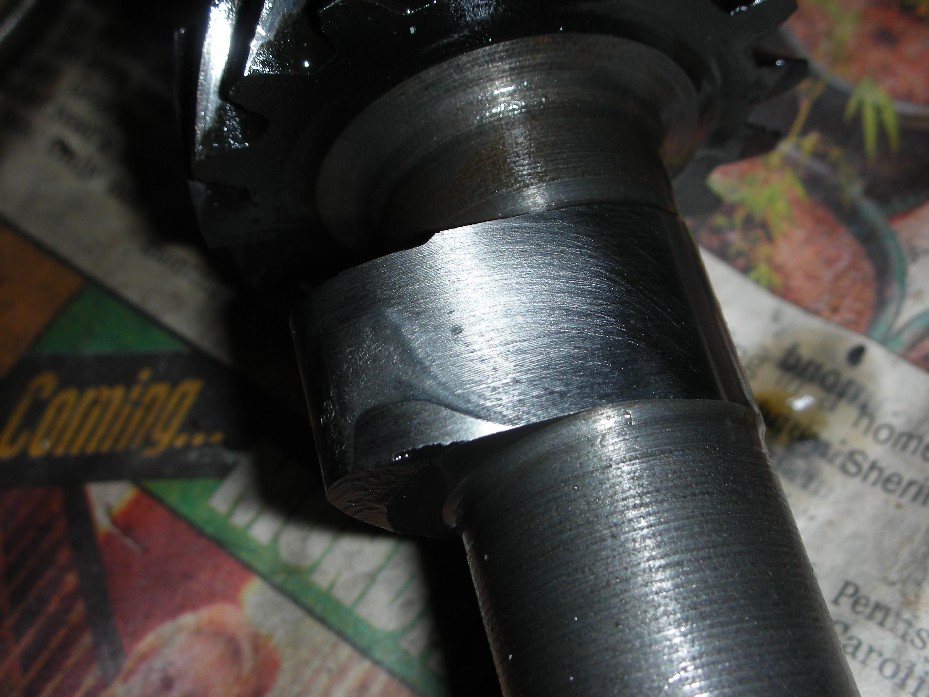

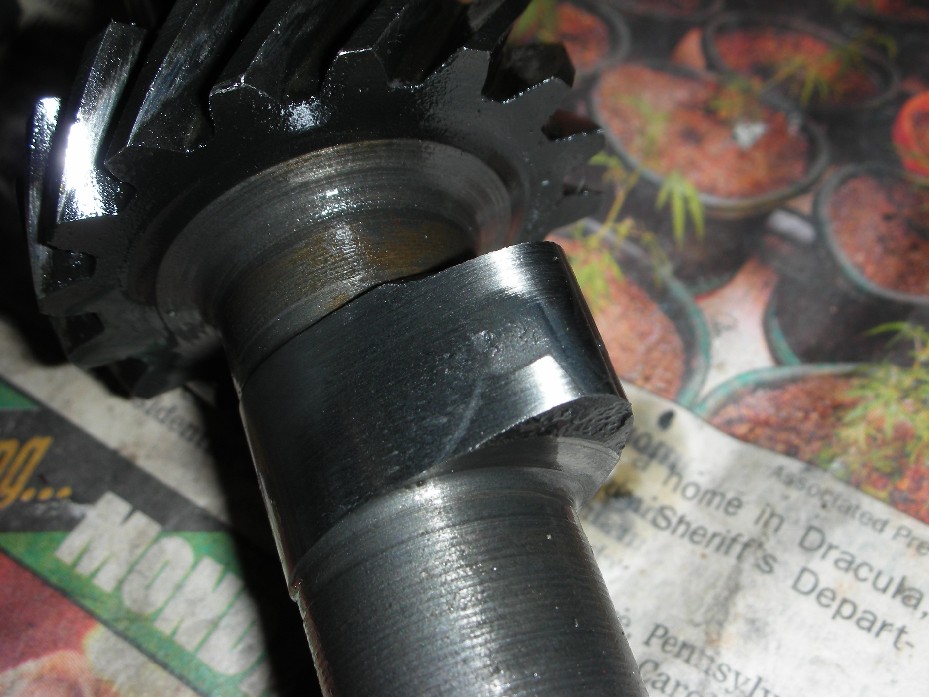

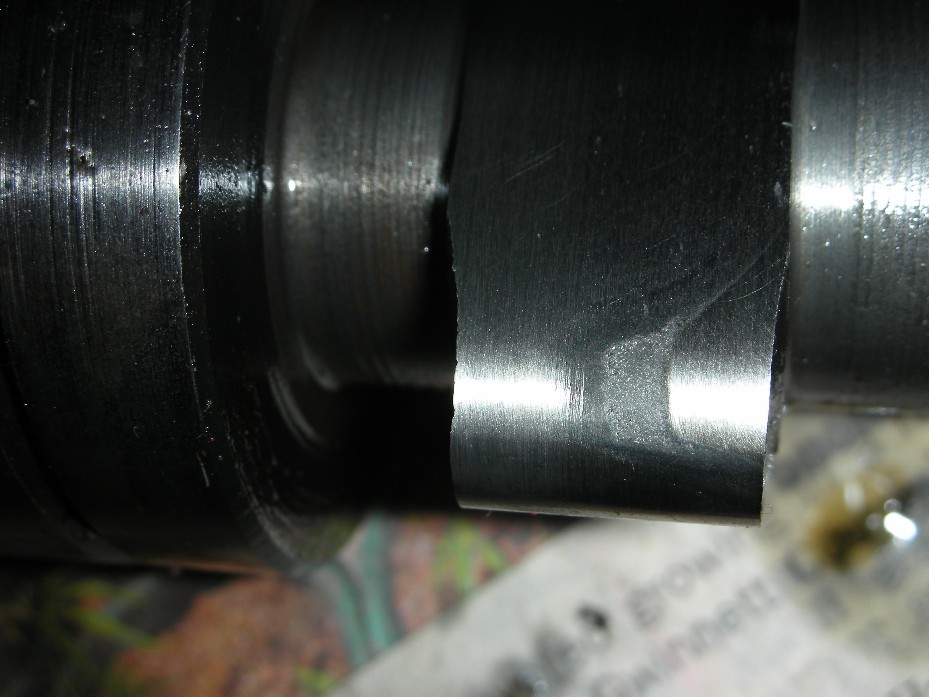

1 Intake - Opening side / Closing side / tip of lobe / Closing side again - there's a little galling on the opening side that you can't feel but can see, there's more galling on the closing side.

DSCN0188.JPG (129751 bytes)   DSCN0189.JPG (137703 bytes)   DSCN0190.JPG (138917 bytes)   DSCN0192.JPG (149966 bytes)

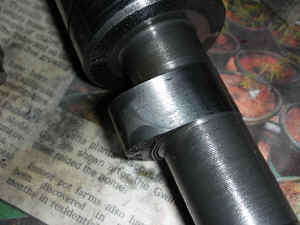

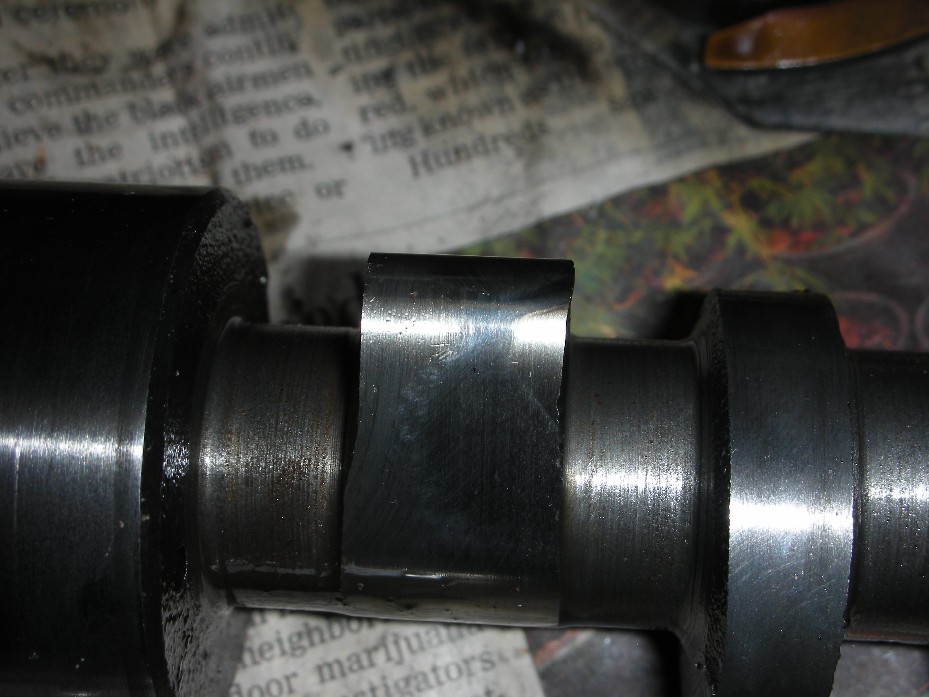

2 Intake - Opening side / Closing side - just a touch of galling on the closing side just past the lobe

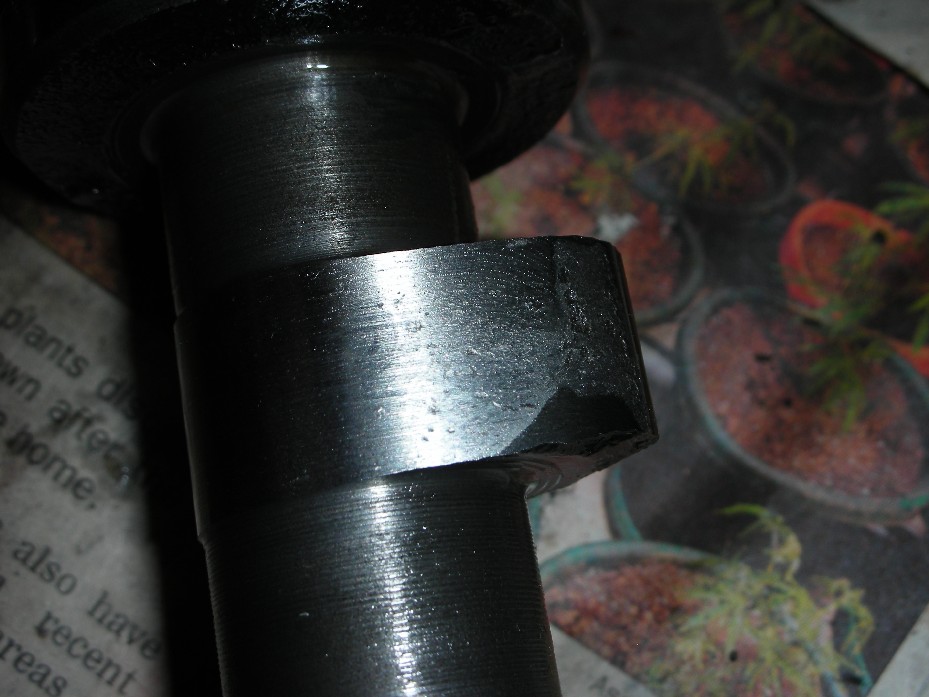

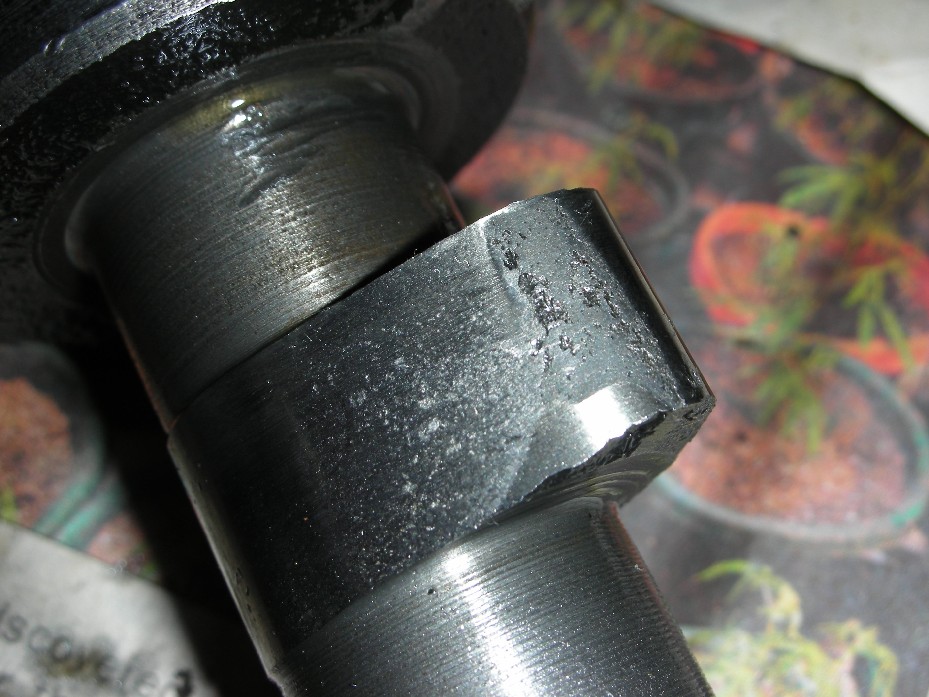

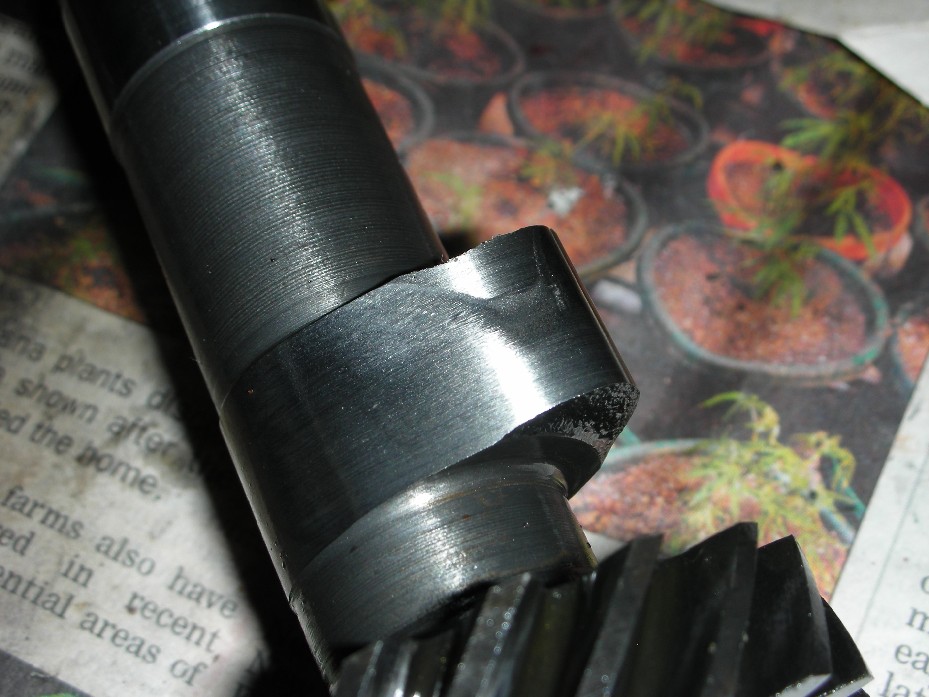

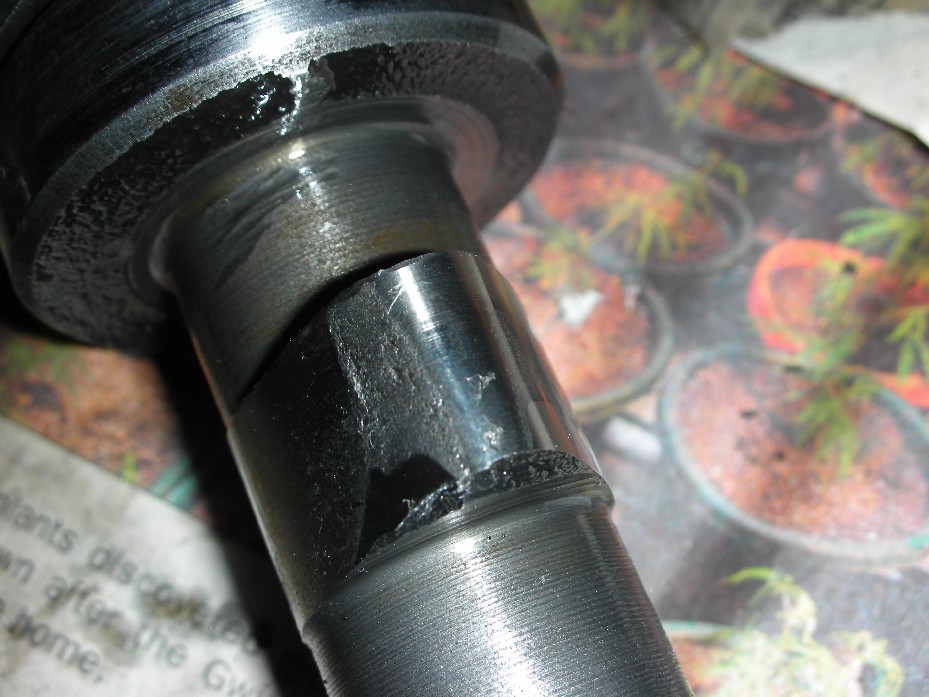

2 Exhaust - Opening side rotating through Closing side - closing side badly galled

DSCN0195.JPG (152518 bytes)   DSCN0196.JPG (141449 bytes)   DSCN0197.JPG (156970 bytes)   DSCN0198.JPG (117817 bytes)

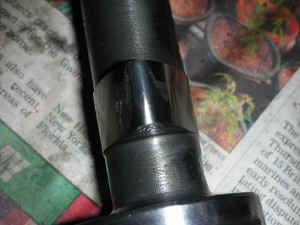

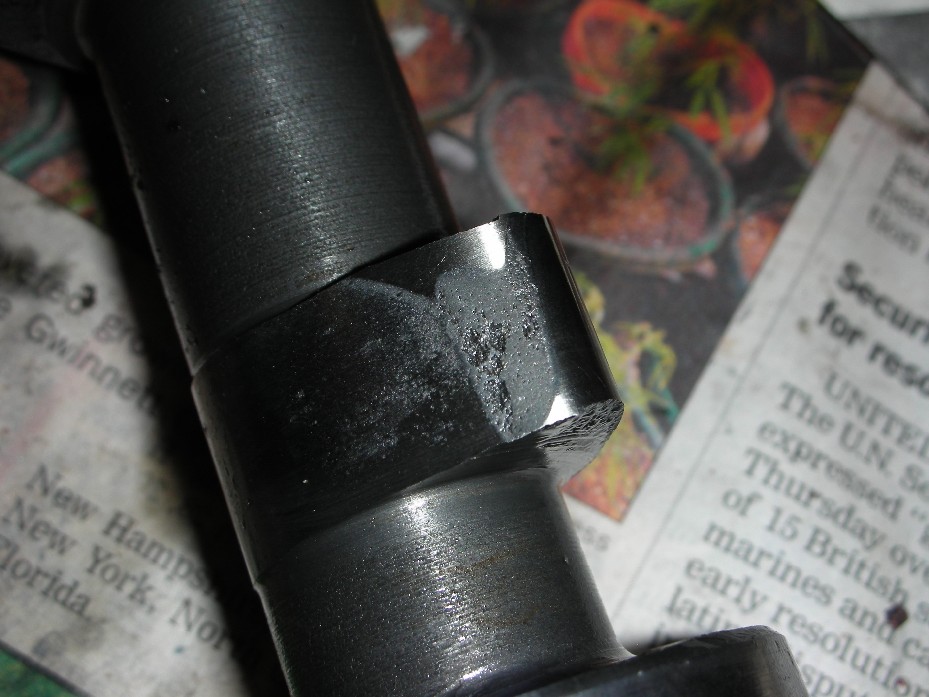

3 Exhaust - Opening side rotating through Closing side - closing side badly galled

DSCN0199.JPG (113944 bytes)   DSCN0200.JPG (124788 bytes)   DSCN0201.JPG (127957 bytes)   DSCN0202.JPG (124539 bytes)

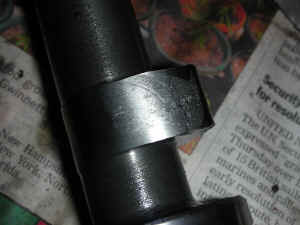

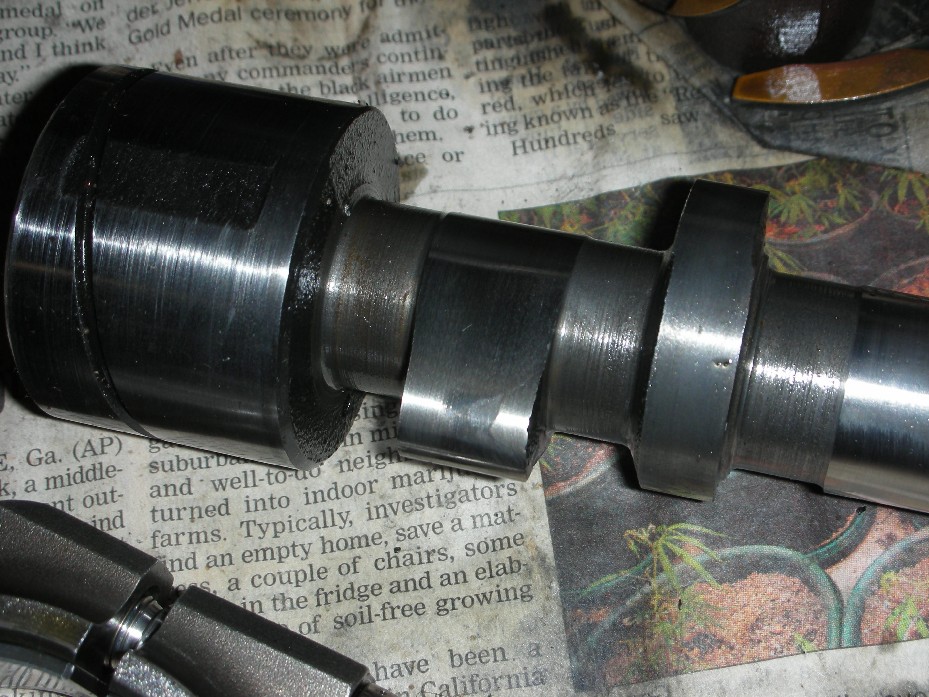

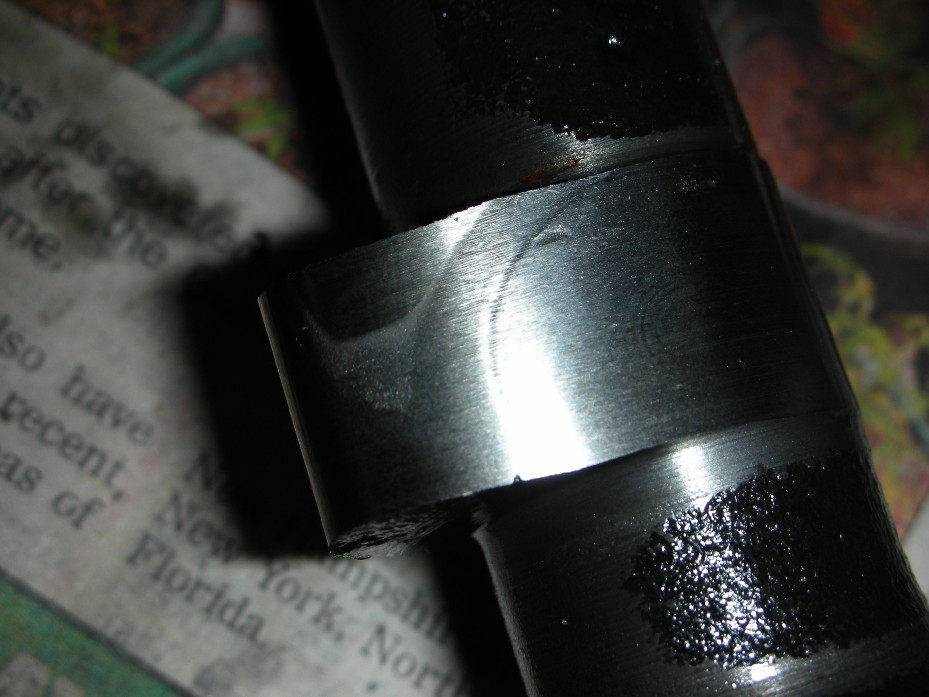

3 Intake - Opening side / Closing side - you can see the galling just starting

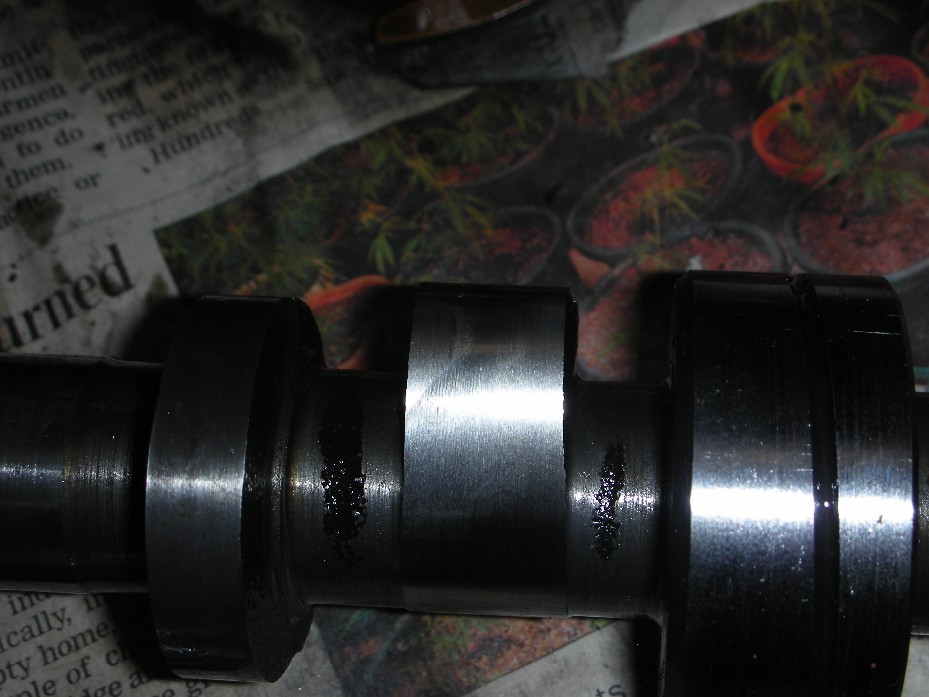

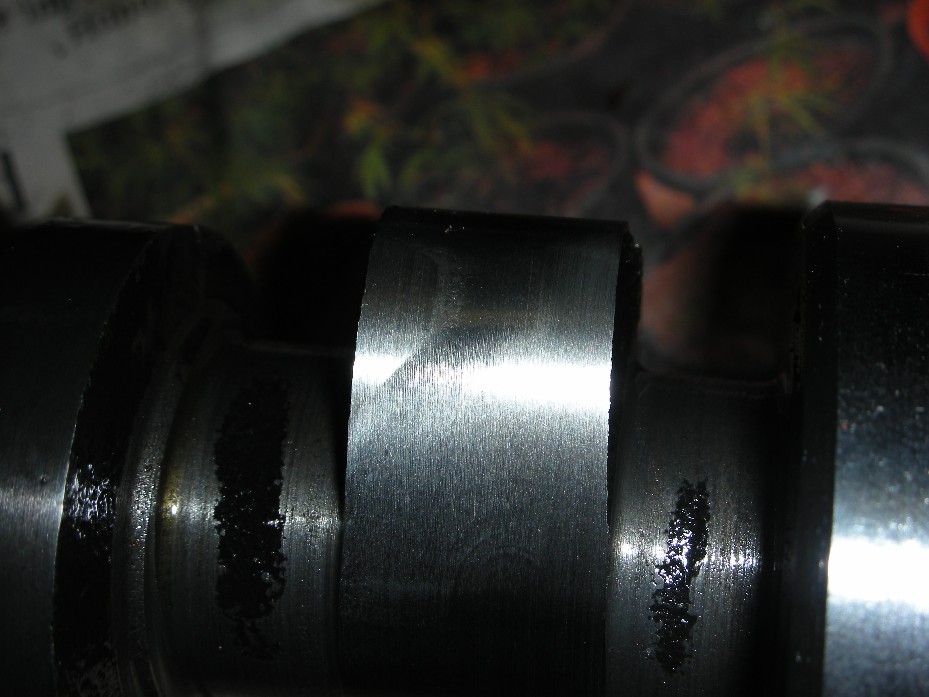

4 Intake - Opening side / Closing side

DSCN0205.JPG (130636 bytes)   DSCN0207.JPG (111357 bytes)   DSCN0208.JPG (109723 bytes)   DSCN0209.JPG (136946 bytes)

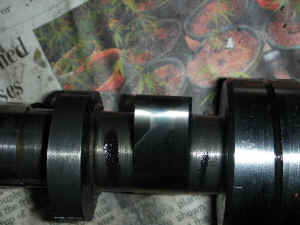

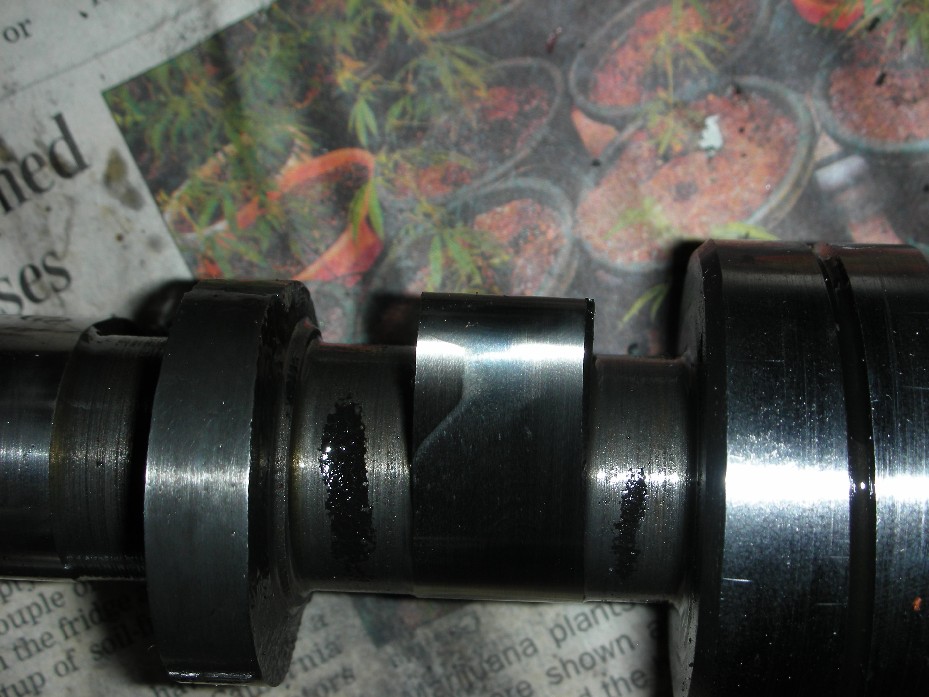

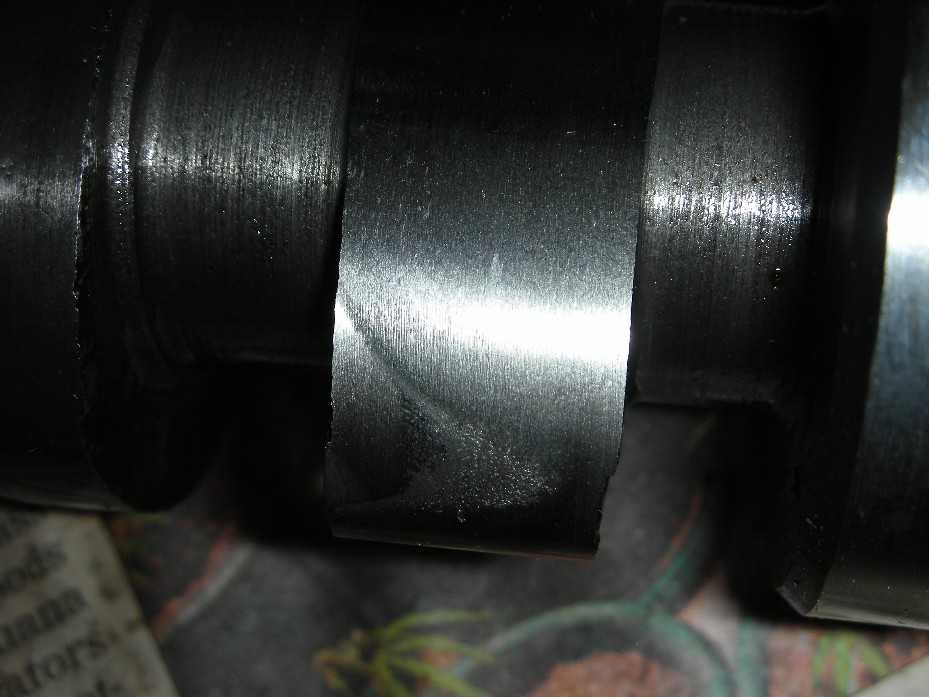

4 Exhaust - Opening side (x 2) / Closing side

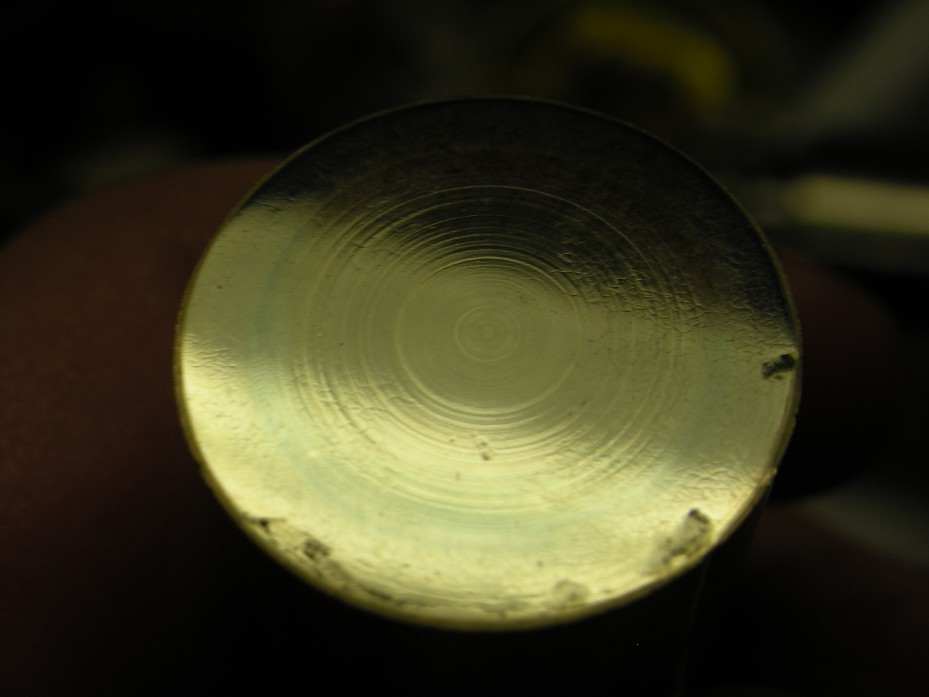

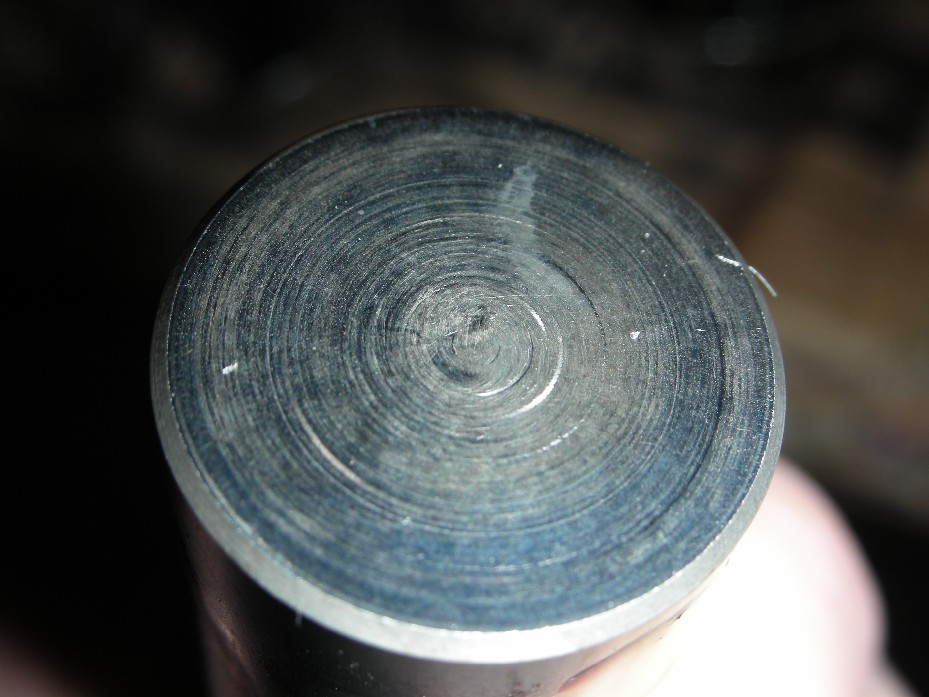

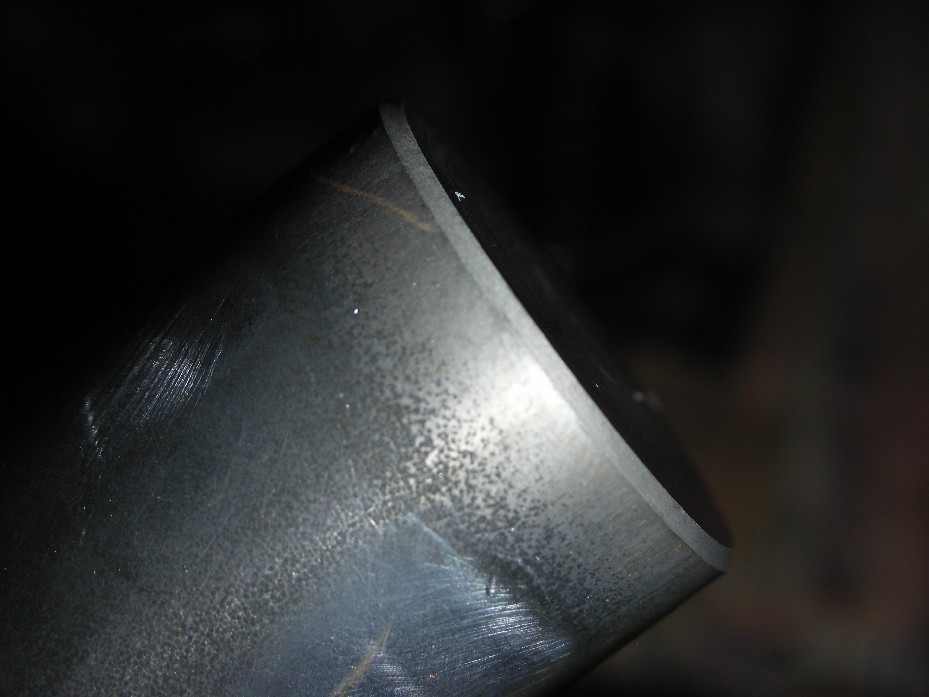

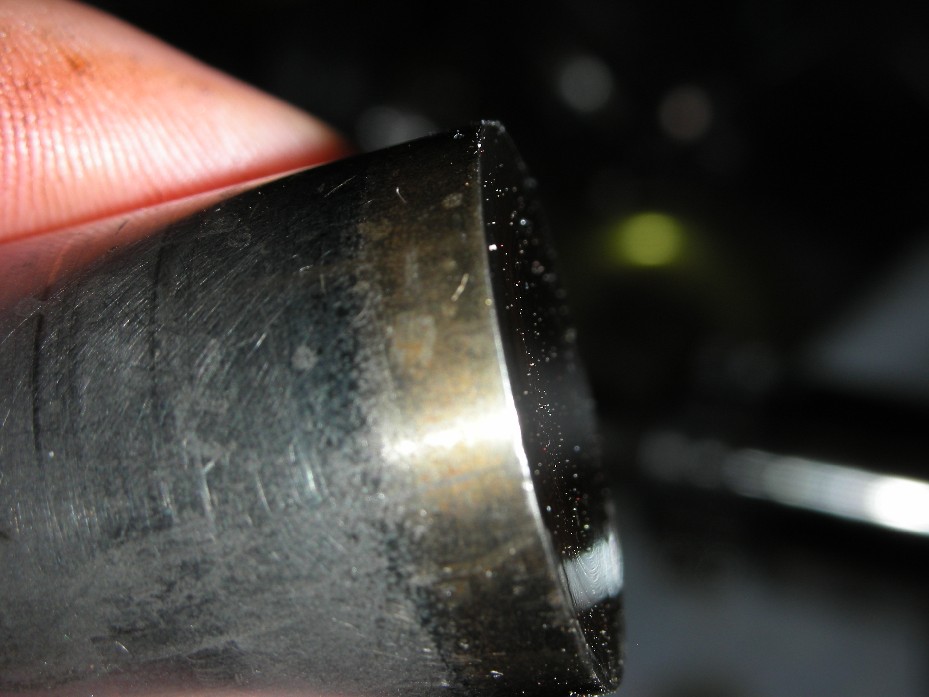

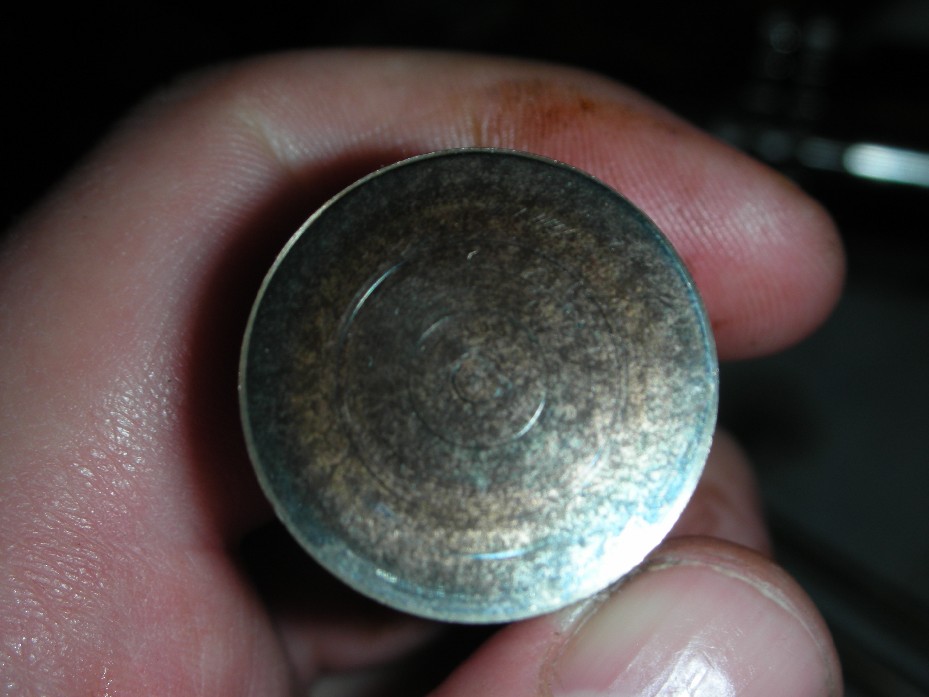

Tappet detail (2 Exhaust tappet) - tappet diameter: 0.937", base diameter inside the chamfer: 0.885", as nearly as I can measure it.  Also, the base is slightly curved - if I place the base of one tappet against another, I can rock them a bit.

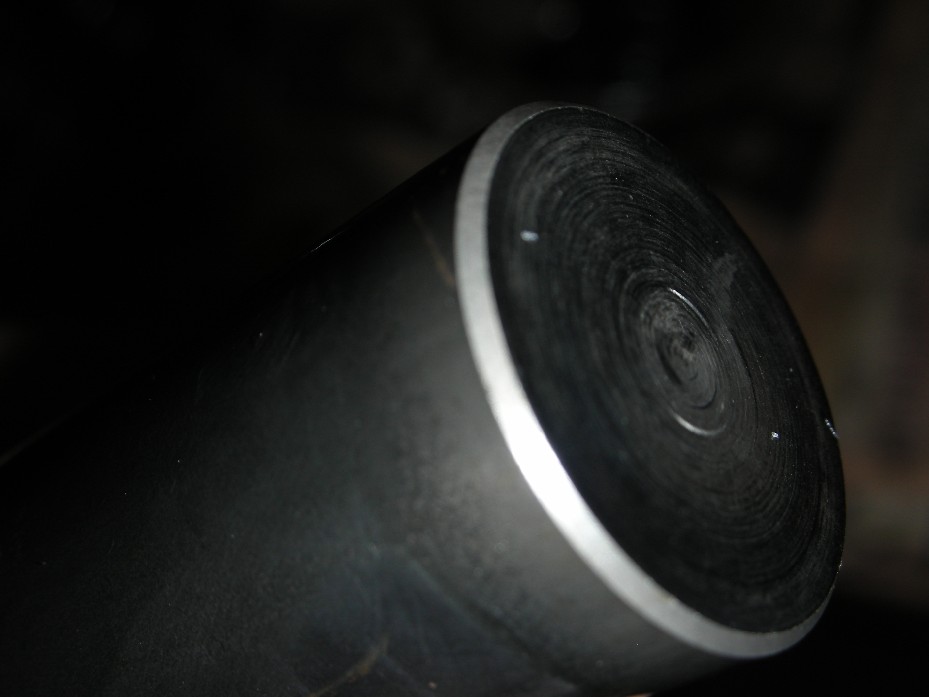

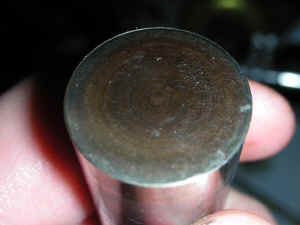

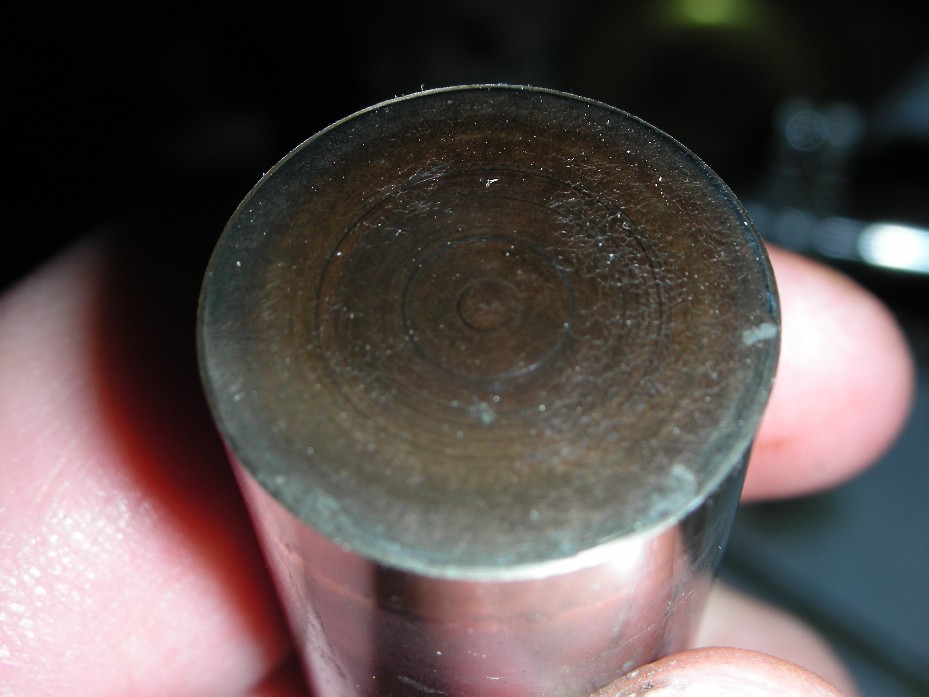

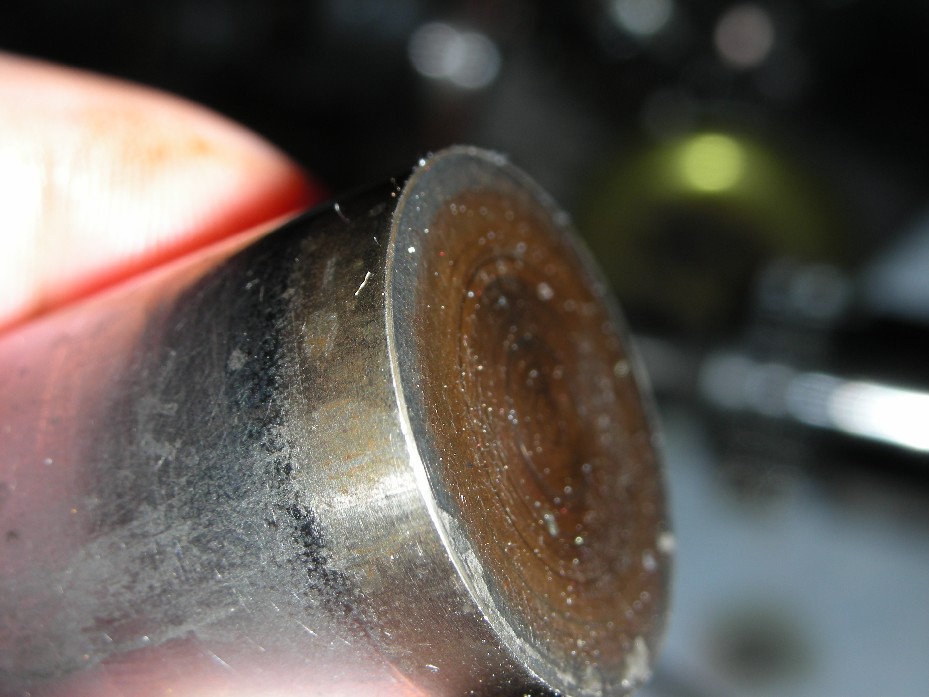

Here's what stock tappets look like - the base it totally flat (if I put two together, there's NO rocking), and there is no chamfer to speak of at the edge

DSCN0216.JPG (98688 bytes)   DSCN0217.JPG (114022 bytes)   DSCN0218.JPG (64635 bytes)   DSCN0219.JPG (99707 bytes)   DSCN0220.JPG (99077 bytes)

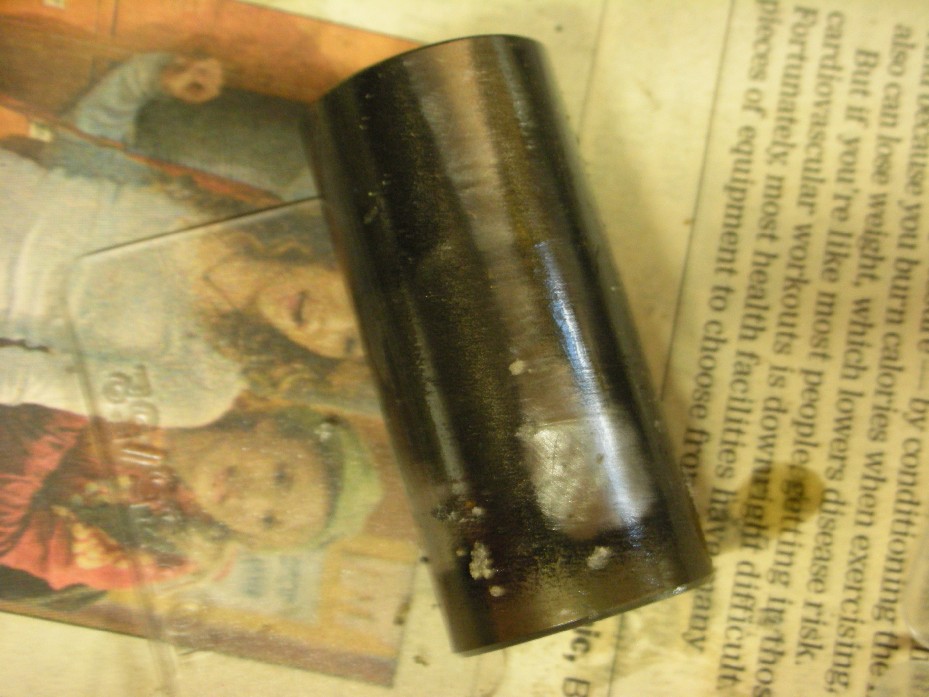

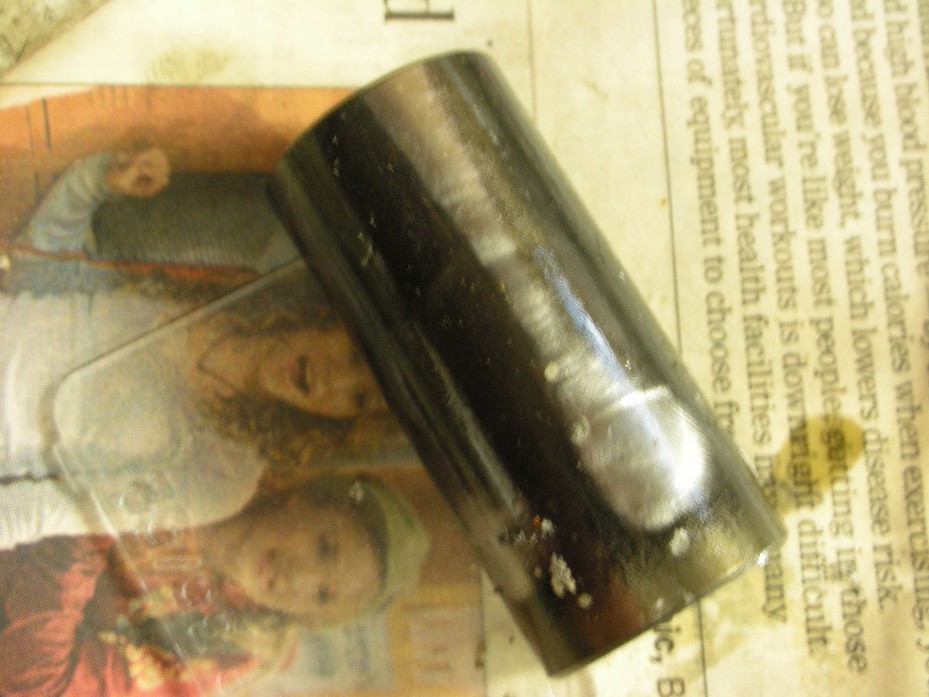

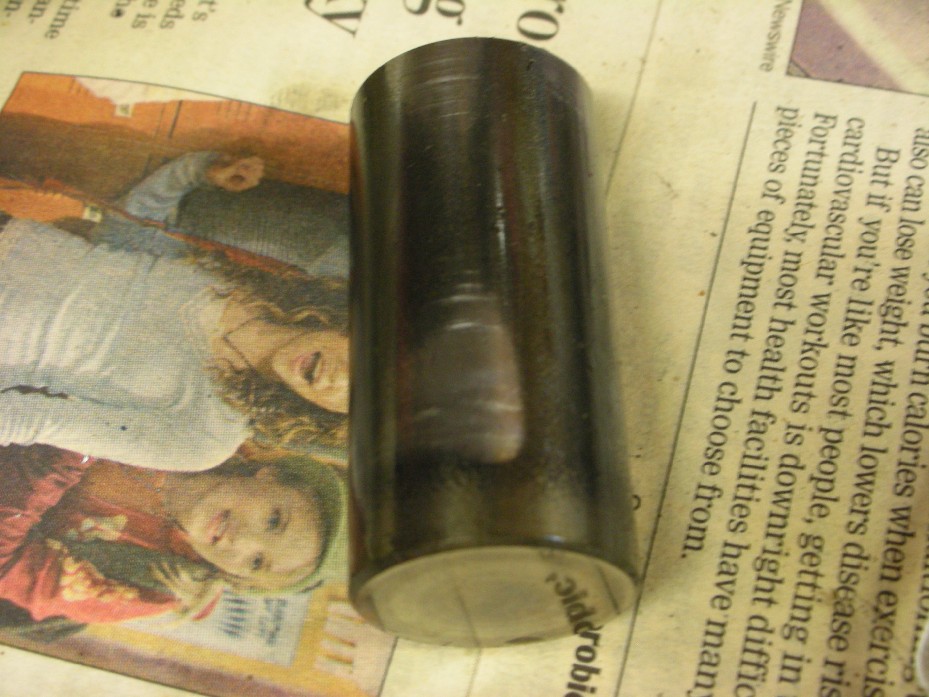

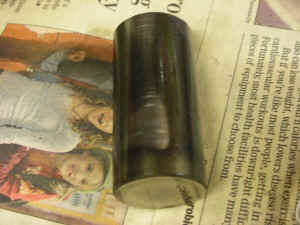

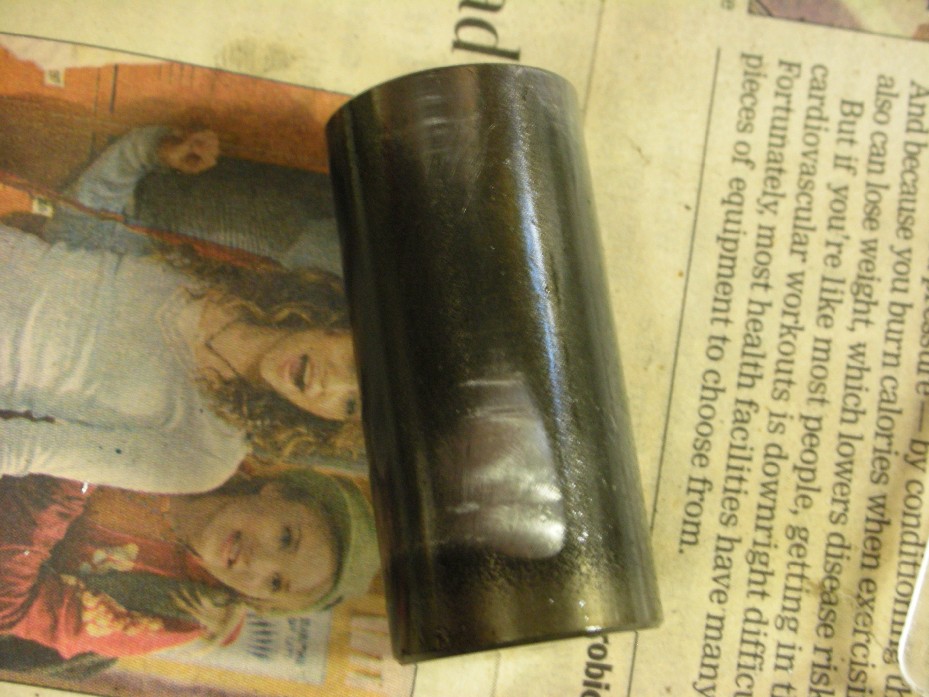

Side wear pattern of a couple of the lifters pulled from the race motor:

DSCN0223.JPG (148642 bytes)   DSCN0224.JPG (145684 bytes)   DSCN0225.JPG (126739 bytes)   DSCN0226.JPG (128268 bytes)
